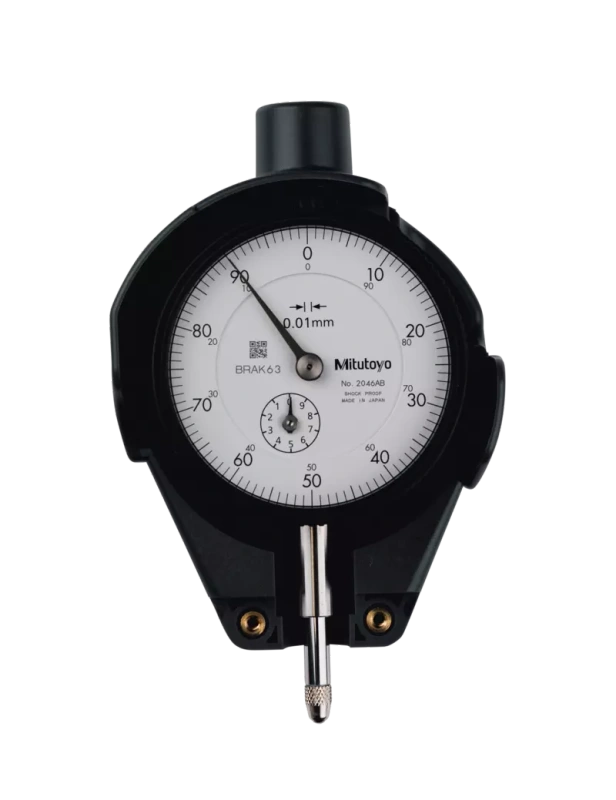

2-Point Inside Measuring Instrument Bore Gauge for Extra Small Holes, 3,7-7,3mm, 0,01mm, incl. Ring 526-153-21

SKU: 526-153-21
This is a two point split contact point ideally suited to smaller bore measurements.
It offers you the following benefits:
  • A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm).
  • You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need.
  • The contact point is hard chrome coated.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • 2-Point Inside Measuring Instrument Bore Gauge for Extra Small Holes, 3,7-7,3mm, 0,01mm, incl. Ring 526-153-21
  • 2-Point Inside Measuring Instrument Bore Gauge for Extra Small Holes, 3,7-7,3mm, 0,01mm, incl. Ring 526-153-21
  • Description
Technical Data

Inch-Metric:
Metric
Digital/Analog:
Analog
Range:
3.7 - 7.3 mm
Graduation:
0.01 mm
Repeatability:
2 µm
Measuring depth:
32 mm
No. Dial Indicator:
2046AB
Number of anvils:
7
Accuracy:
4 µm
6 µm for range 10-18 mm
Delivered:

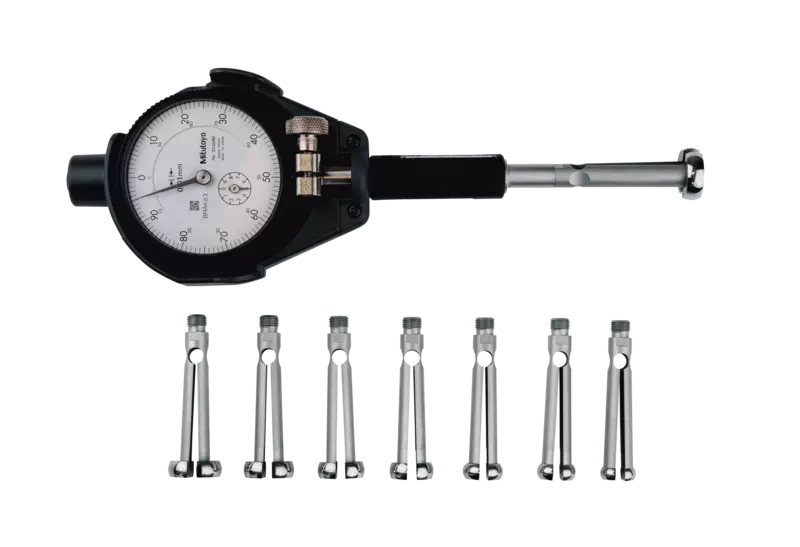

In a box, with dial indicator, cover for dial indicator and setting ring

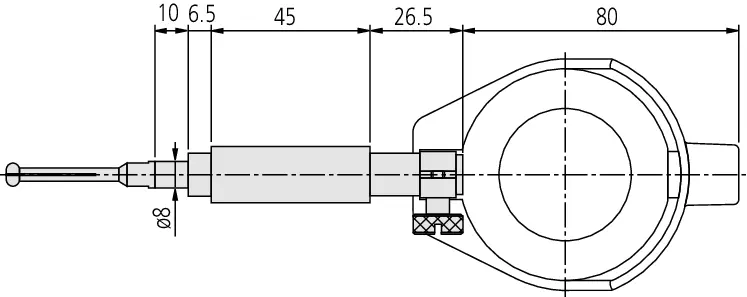

Dimensions
