2-Point Inside Measuring Instrument Bore Gauge, 250-400mm, 0,01mm 511-716-20

SKU: 511-716-20
This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:
  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • 2-Point Inside Measuring Instrument Bore Gauge, 250-400mm, 0,01mm 511-716-20
  • 2-Point Inside Measuring Instrument Bore Gauge, 250-400mm, 0,01mm 511-716-20
  • 2-Point Inside Measuring Instrument Bore Gauge, 250-400mm, 0,01mm 511-716-20
  • 2-Point Inside Measuring Instrument Bore Gauge, 250-400mm, 0,01mm 511-716-20
  • Description
Technical Data

Inch-Metric:
Metric
Range:
250 - 400mm
Graduation:
0.01 mm
Stroke of contact point:
1.6 mm
Measuring depth:
250 mm
No. Dial Indicator:
2046AB
Number of anvils:
5
Accuracy:
2 μm
Repeatability:
0.5 μm
Digital/Analog:
Analog
Delivered:

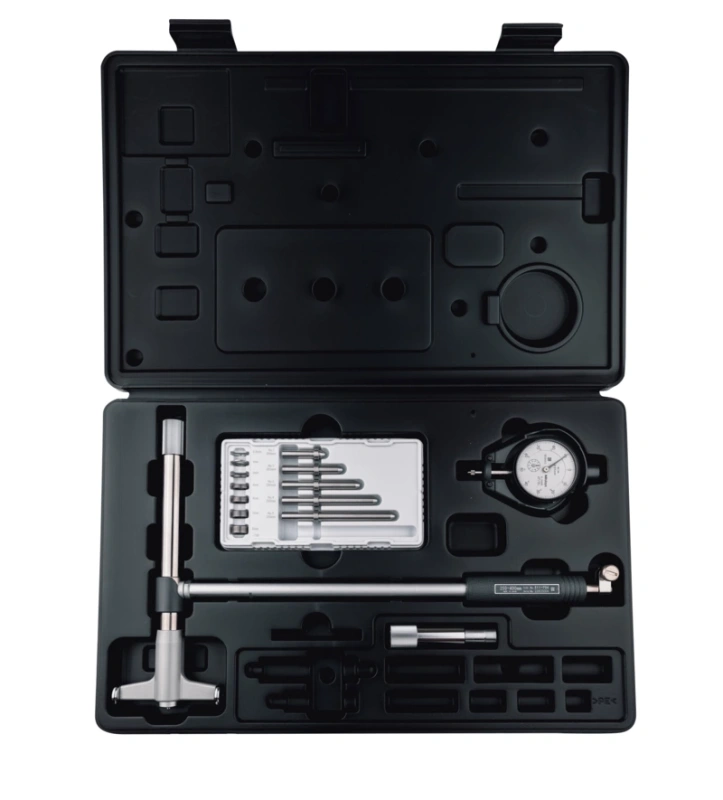

In a box with bore gauge 511-706, dial indicator 2046AB, plastic cover for indicator 21DZA000, 5 anvils, 7 interchangeable washer, 1 sub anvil
Mass:
945g

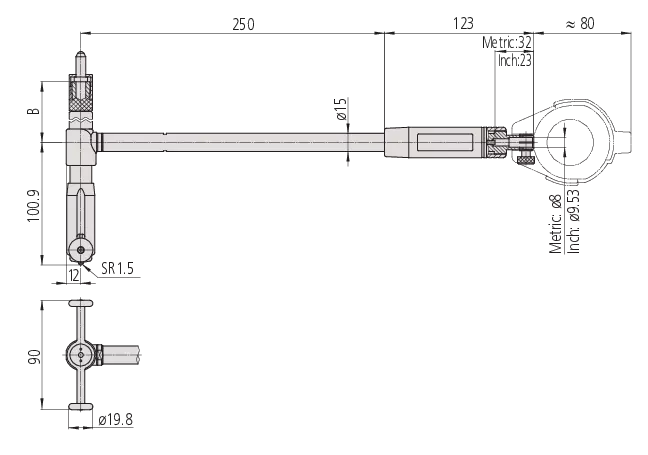

Dimensions

B: 140 mm
