2-Point Inside Measuring Instrument Bore Gauge, 18-150mm, 0,001mm 511-922-20

SKU: 511-922-20
This is a wide range application set of Bore Gauges that automatically self-centres via a centring bridge and offers you the following benefits:
  • Carbide for the contact point ensuring high durability and wear resistance
  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • 2-Point Inside Measuring Instrument Bore Gauge, 18-150mm, 0,001mm 511-922-20
  • 2-Point Inside Measuring Instrument Bore Gauge, 18-150mm, 0,001mm 511-922-20
  • Description
Technical Data

Inch-Metric:
Metric
Range:
18 - 150mm
Graduation:
0.001 mm
Measuring depth:
100/150 mm
No. Dial Indicator:
2109AB-10
Accuracy:
2 μm
Repeatability:
0.5 μm
Digital/Analog:
Analog
Delivered:

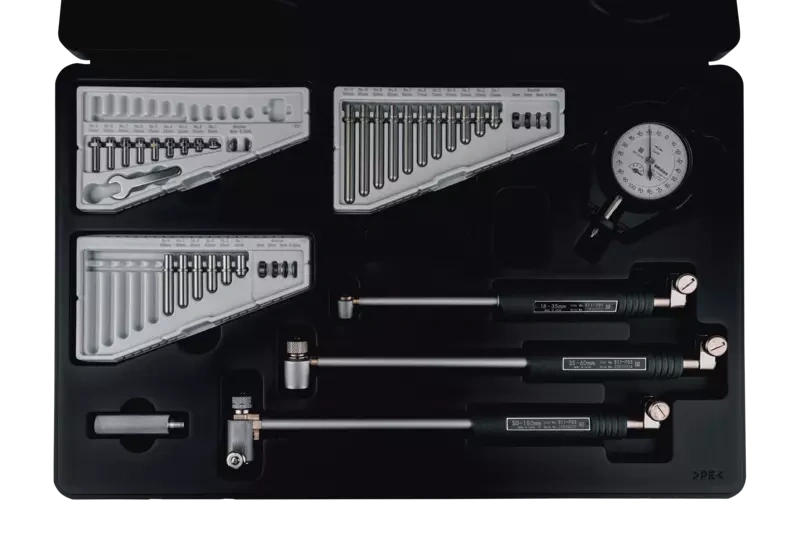

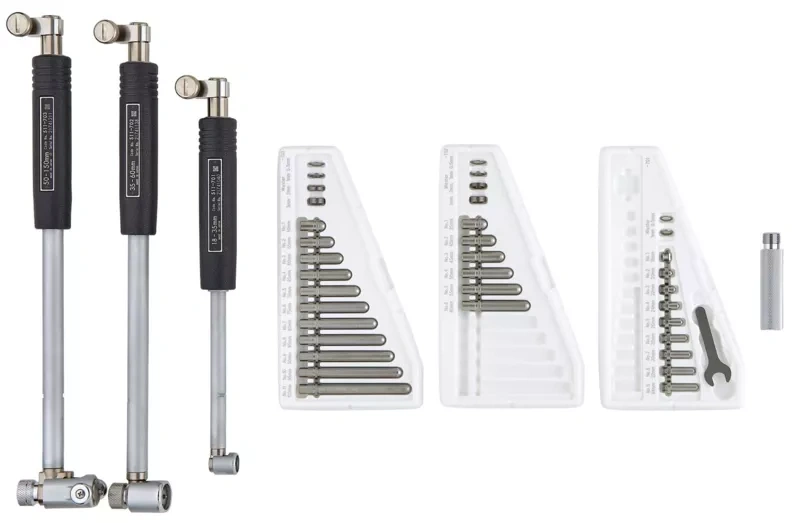

In a box with bore gauge 511-701 / 511-702 / 511-703, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 26 anvils, 10 washers, 1 sub-anvil, spanner 102148
