2-Point Inside Measuring Instrument Bore Gauge for Extra Small Holes, 10-18mm, w/o Indicator 526-102

SKU: 526-102

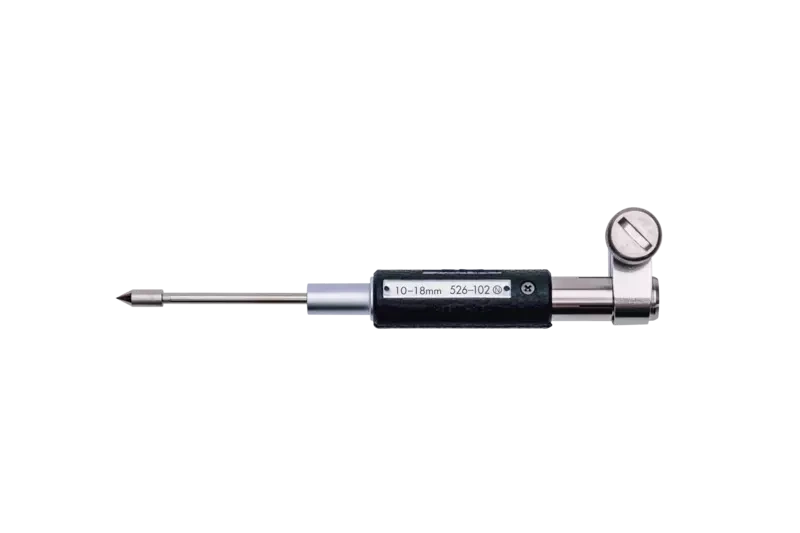

This is a two point split contact point ideally suited to smaller bore measurements.
It offers you the following benefits:
  • A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm).
  • You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need.
  • The contact point is hard chrome coated.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • 2-Point Inside Measuring Instrument Bore Gauge for Extra Small Holes, 10-18mm, w/o Indicator  526-102
  • 2-Point Inside Measuring Instrument Bore Gauge for Extra Small Holes, 10-18mm, w/o Indicator  526-102
  • Description
Technical Data

Inch-Metric:
Metric
Range:
10 - 18 mm
Accuracy:
6 µm
Repeatability:
2 µm
Number of anvils:
8
Delivered:

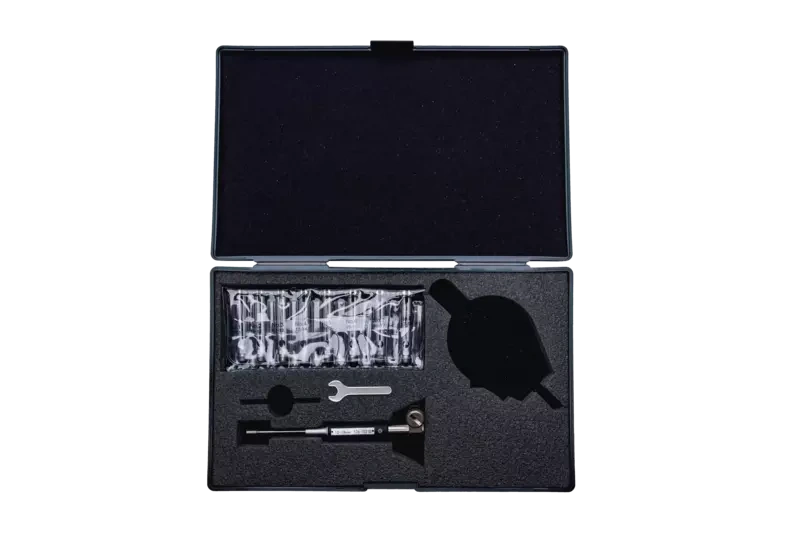

In a box, without dial indicator, cover for dial indicator and setting ring


Dimensions
