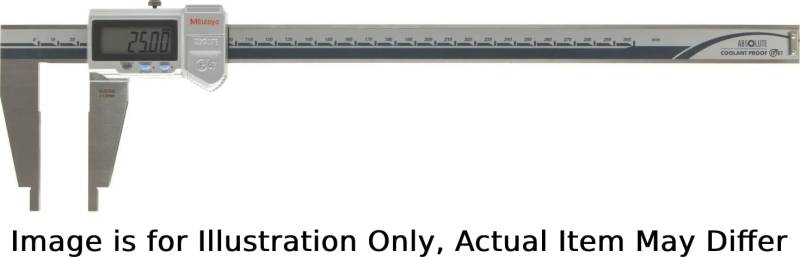

The Mitutoyo Digimatic digital caliper features nib style jaws with rounded measuring faces to fit rounded surfaces closer to make highly accurate inside dimension measurements.
- Available in Metric and Inch/Metric models
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- The caliper is constructed of corrosion-resistant, hardened stainless steel
- IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
- Supplied in fitted plastic case; 1000mm / 40″ model supplied in wooden case.
SERIES 550 Technical Data
| Technology: |
Digimatic |
| Length Standard: |
ABSOLUTE electromagnetic induction type linear encoder |
| Max Response Speed: |
Unlimited |
| Display: |
LCD |
| Battery: |
SR44 (1 pc.) 938882 |
| Battery life: |
Approx. 5 years under normal use |
| SPC Output: |
Yes |
| Order No.: |
Units: |
IP Rating: |
Range: |
Minimum dimension in ID measurement: |
Resolution: |
Accuracy: |
Mass: |
Offset/preset function: |
Optional Accessories: |
| 550-203-10 |
Metric |
- |
0-450mm |
20.1mm |
0.01mm |
±0.05mm |
1110g |
No |
- |
| 550-205-10 |
Metric |
- |
0-600mm |
20.1mm |
0.01mm |
±0.05mm |
1290g |
No |
- |
| 550-207-10 |
Metric |
- |
0-1000mm |
20.1mm |
0.01mm |
±0.07mm |
3350g |
No |
- |
| 550-223-10 |
Metric, Inch |
- |
0-450mm / 0-18" |
20.1mm / 0.504" |
0.01mm / 0.0005" |
±0.002" |
1110g |
No |
- |
| 550-225-10 |
Metric, Inch |
- |
0-600mm / 0-24" |
20.1mm / 0.504" |
0.01mm / 0.0005" |
±0.002" |
1290g |
No |
- |
| 550-227-10 |
Metric, Inch |
- |
0-1000mm / 0-40" |
20.1mm / 1.004" |
0.01mm / 0.0005" |
±0.003" |
3350g |
No |
- |
| 550-301-20 |
Metric |
IP67 |
0-200mm |
10.1mm |
0.01mm |
±0.03mm |
180g |
No |
- |
| 550-311-20 |
Metric, Inch |
IP67 |
0-200mm / 0-8" |
10.1mm / 0.404" |
0.01mm / 0.0005" |
±0.0015" |
180g |
No |
- |
| 550-331-10 |
Metric |
IP67 |
0-300mm |
10.1mm |
0.01mm |
±0.03mm |
380g |
Yes |
- |
| 550-341-10 |
Metric, Inch |
IP67 |
0-300mm / 0-12" |
10.1mm / 0.404" |
0.01mm / 0.0005" |
±0.002" |
380g |
Yes |
- |
