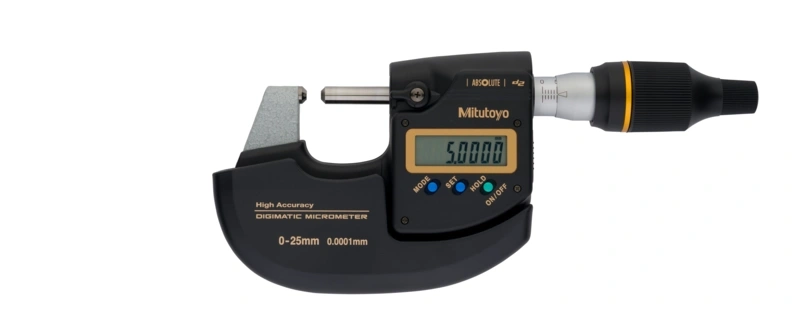

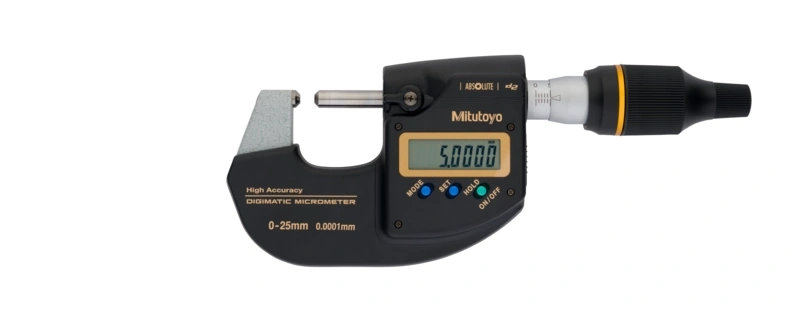

High Accuracy Digital Micrometer 0-25mm, 0,0001mm 293-100-20

SKU: 293-100-20
This Micrometer enables 0.1 μm resolution measurements and is
ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis).
The Absolute High-Accuracy Micrometer offers the following benefits:
  • It delivers higher accuracy without sacrificing operability, by using Mitutoyo‘s innovative 0.1 μm resolution ABS (absolute) rotary
    sensor and high accuracy screw machining technology which
    reduces instrumental error to just 0.5 μm.
  • Its highly rigid frame and high-performance constant-force
    mechanism (7-9 N) enable more stable measurement.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • High Accuracy Digital Micrometer 0-25mm, 0,0001mm 293-100-20
  • High Accuracy Digital Micrometer 0-25mm, 0,0001mm 293-100-20
  • Description
Technical Data

Model:
MDH-25MC
Digital/Analog:
Digital
Delivered:
Including wooden box, spanner 200877, screwdriver 04AAB985, CR2032 battery, cleaning paper, thermally insulating cover 04AAB969A, certificate of inspection
Inch-Metric:
Metric
Range:
0 - 25 mm
Digital step:
0.1 µm / 0.5 µm
Max.
Permissible Error
J MPE:
±0.5 µm
Flatness:
0.3 µm
Parallelism:
0.6 µm
Data output:
Yes
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish, Ø 3.2 mm
Measuring spindle:
With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring force:
7 - 9 N
Power supply:
1 lithium battery CR-2032
Battery life:
Approx. 2 years
ON/OFF:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
PRESET:
Yes
Resolution switching:
Yes
Mass:
400 g

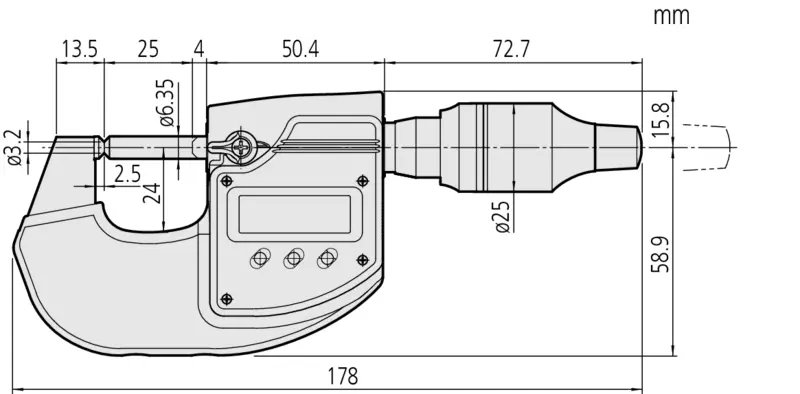

Dimensions
