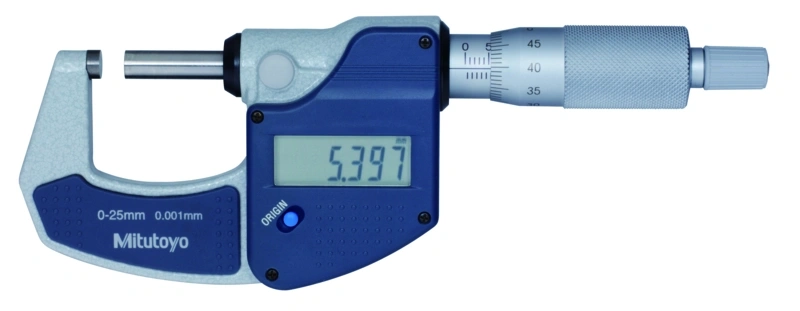

Digital Micrometer 0-25mm, w/o Data Output 293-821-30

SKU: 293-821-30
A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Digital Micrometer 0-25mm, w/o Data Output 293-821-30
  • Description
Technical Data

Model:
MDC-25SX
Digital/Analog:
Digital
Delivered:
Including box, spanner, SR44 battery, certificate of inspection
Inch-Metric:
Metric
Range:
0 - 25 mm
Digital step:
0.001 mm
Max. Permissible Error J MPE:
±2 µm
Flatness:
0.3 µm
Parallelism:
1 µm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
ORIGIN:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
Mass:
275 g

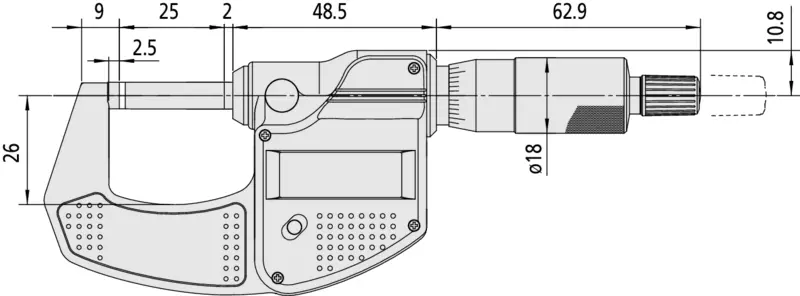

Dimensions
