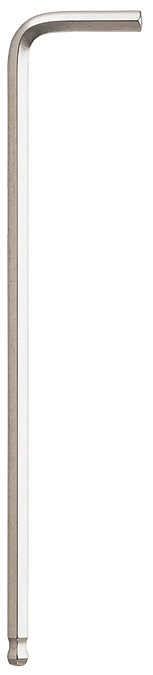

Taper Head Hex Key Wrench TL
Sizes
mm:1.5 2 2.5 3 4 5 6 8 10 11 12 14 17 19
inch:1/16 5/64 3/32 1/8 5/32 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4
Long portion wrench head : Taper Head
Length Type : Extra Long
Surface treatment : EL/ARMOUR plated
Sizes
mm:1.5 2 2.5 3 4 5 6 8 10 11 12 14 17 19
inch:1/16 5/64 3/32 1/8 5/32 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4
Long portion wrench head : Taper Head
Length Type : Extra Long
Surface treatment : EL/ARMOUR plated

1. Tapered section :
The Taper Head hex key wrench is specifically designed to secure surface contact to bolt walls even when a wrench is inserted from tilted angle.
2. Vertex linear section :
Flat surface at the Vertex linear section ensures firm surface contact to
the bolt walls and prevents from wearing out.
3. Neck bottom linear section :
Linear section at the neck bottom enahnces torque resistance to prevent
the neck from breaking under high-torque usage.
4. Thick Neck section :
Thick neck section design enables final tightening, while ball point hex key wrenches are designed only for temporary tightening.
