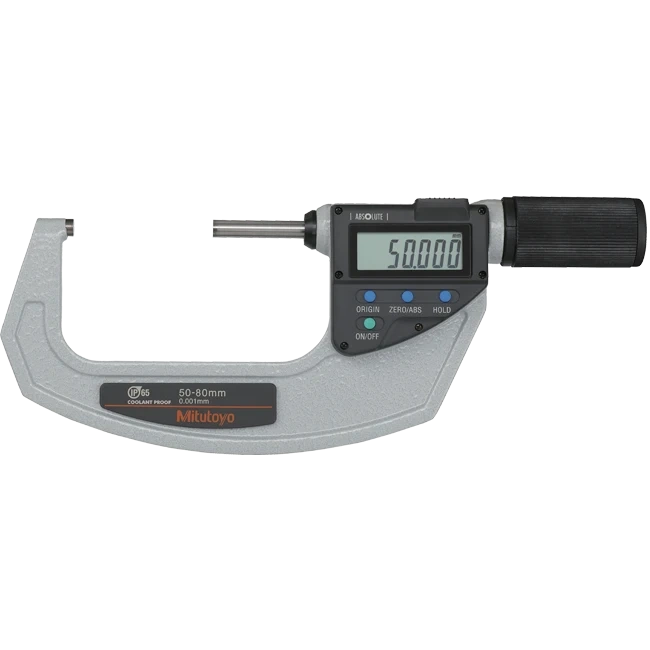

Series 293 Quickmike 293-668-20

The Mitutoyo Digimatic Quickmike coolant proof digital micrometer feeds the spindle 10mm per thimble rotation, or 20-times faster than standard micrometers. This speed provides quicker measurements on different sized features. Its wide 30mm / 1.2” measuring range allows for measuring of different workpieces without sacrificing speed or accuracy.

• The Quickmike provides a speedy spindle feed of 10mm / .4” per thimble rotation compared to the conventional micrometer with 5mm / .025” per rotation.
• Non-rotating spindle and the new ratchet friction thimble reduces torsion on softer parts being measured
• Ratchet thimble allows for easy single-hand use when measuring objects
• ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Elimination of overspeed errors provides a higher measurement reliability and repeatability
• IP54 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments
• Available with SPC data output capabilities
• Includes a standard bar to set the origin point (for models with 25-55mm / 1-2.2” ranges or larger)
• Supplied in fitted plastic case
