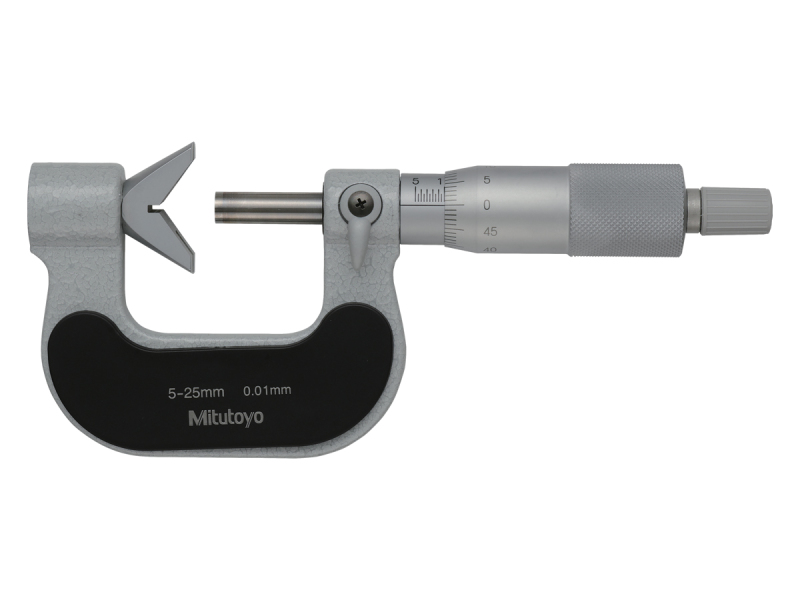

The Mitutoyo V-Anvil micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Available in Metric or Inch models
- V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
- Ratchet mechanism provides an audible click to ensure measurement performs with a constant force
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish fordurability and longer lifespan
- Supplied in fitted plastic case
Technical Data
| Technology: |
Mechanical |
| SPC Output: |
No |
| Measuring Faces: |
Carbide tipped (spindle only) |
| Remarks: |
5-Flute |
Please contact us for more models.
| Order No.: |
Units: |
Range: |
Accuracy: |
Mass: |
Graduation: |
Remarks: |
| 114-121 |
Metric |
5-25mm |
±4μm |
255g |
0.01mm |
w/Groove |
| 114-122 |
Metric |
25-45mm |
±5μm |
400g |
0.01mm |
- |
| 114-123 |
Metric |
45-65mm |
±6μm |
540g |
0.01mm |
- |
| 114-124 |
Metric |
65-85mm |
±7μm |
760g |
0.01mm |
- |
| 114-135 |
Inch |
.09-1" |
±.0002" |
255g |
0.0001" |
- |
