The Mitutoyo ratchet stop outside micrometer is ideal for measuring metal and non-metal workpieces in tight spaces and narrow slots attributed to the taper of its frame on the anvil side. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Scale is laser etched on thimble and sleeve for fast and easy measurement readings
- Heat-insulated frame minimalizes thermal expansion for consistent measurements in different environments
- Carbide measuring faces on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Speeder is always available for quick rotation of the spindle
- Includes a standard bar except for 0-25mm models
- Supplied in a fitted plastic case
Technical Data
| Technology: |
Mechanical |
| Units: |
Metric |
| SPC Output: |
No |
| Ratchet/Thimble: |
Ratchet Stop |
| Graduation: |
0.01mm |
| Measuring Force: |
5-10N |
| Measuring Faces: |
Carbide tipped |
| Flatness: |
0.6μm |
Please contact us for more models.
| Order No.: |
Range: |
Accuracy: |
Mass: |
Parallelism: |
Set/s: |
| 102-301 |
0-25mm |
±2μm |
180g |
2μm or less |
- |
| 102-302 |
25-50mm |
±2μm |
270g |
2μm or less |
- |
| 102-303 |
50-75mm |
±2μm |
375g |
2μm or less |
- |

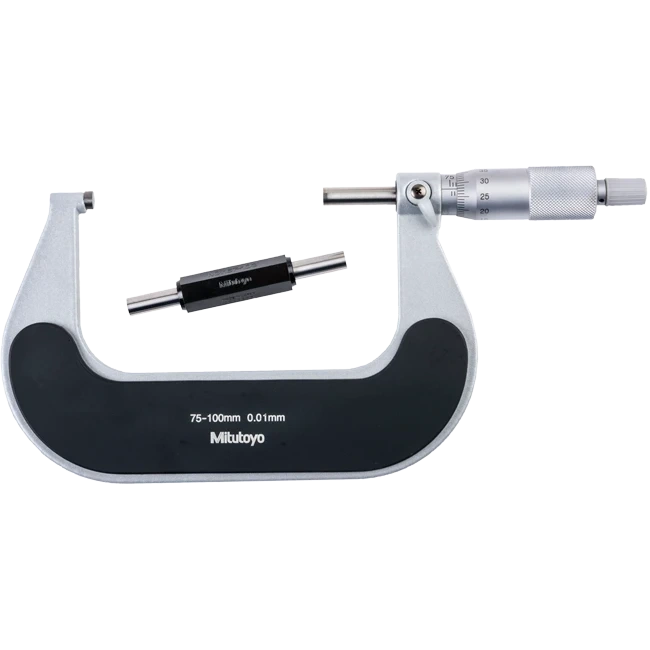

| 102-304 |
75-100mm |
±3μm |
490g |
3μm or less |
- |
| 102-911-40 |
0-100mm |
±3, 2μm |
- |
2, 3μm or less |
- |
