Home > Measuring Tools > Micrometers > Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125
  • Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125
1/1
  • Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125

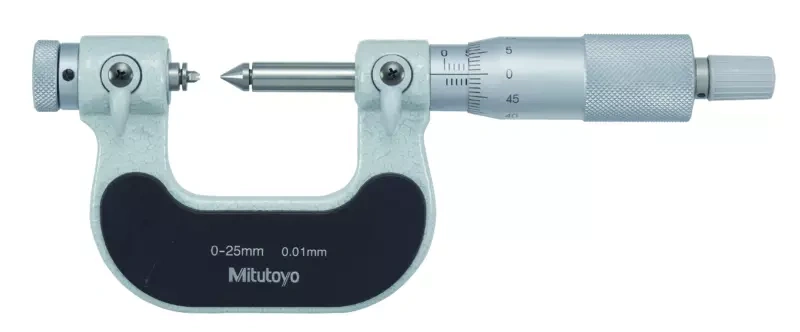

Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125

SKU: 126-125
A Mitutoyo non-digital micrometer designed to mount easily interchangeable anvils/spindle-tips for measuring a wide range of screw threads. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125
  • Description
Technical Data

Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Spindle feed error:
3 µm
Measuring face:
Interchangeable anvil/spindle inserts (optional)
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
240 g

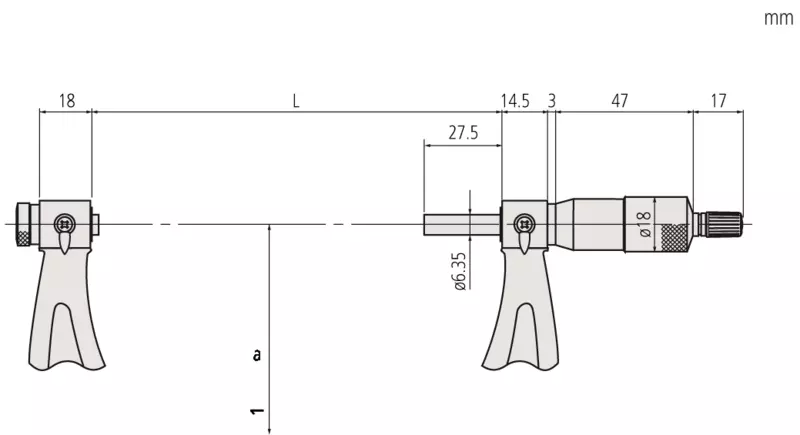

Dimensions



L:  39.5mm    a: 25 mm
