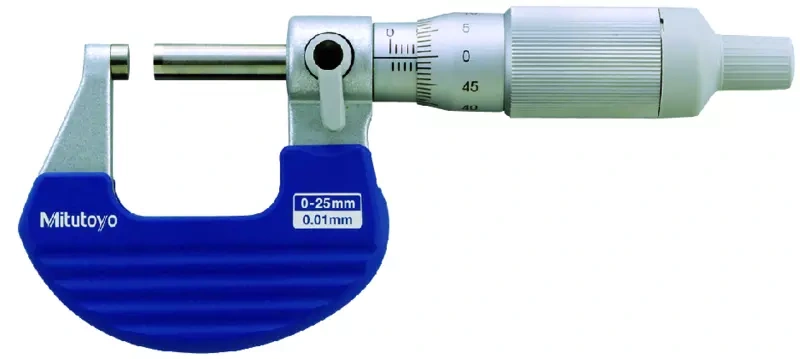

Ratchet Thimble Micrometer 0-25mm, 0,01mm 102-701

SKU: 102-701

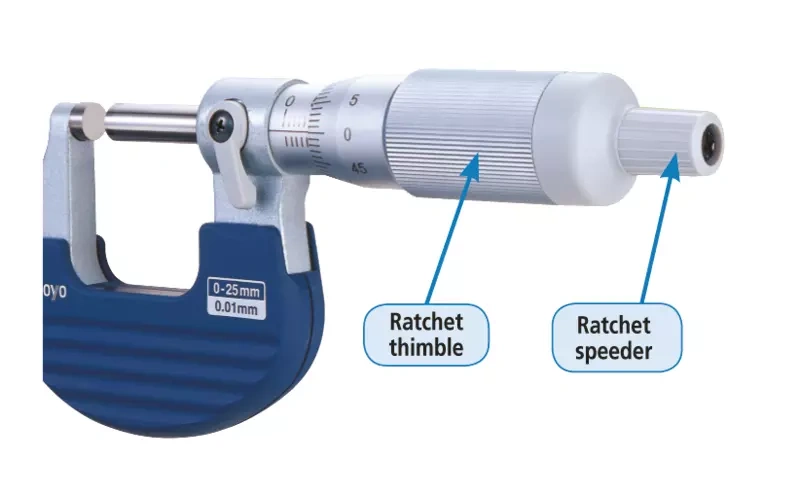

A Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Ratchet Thimble Micrometer 0-25mm, 0,01mm 102-701
  • Ratchet Thimble Micrometer 0-25mm, 0,01mm 102-701
  • Ratchet Thimble Micrometer 0-25mm, 0,01mm 102-701
  • Description
Technical Data

Digital/Analog:
Analog
Delivered:
Including box, key, certificate of inspection
Inch-Metric:
Metric
Range:
0 - 25 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0.6 µm
Parallelism:
2 µm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
180 g

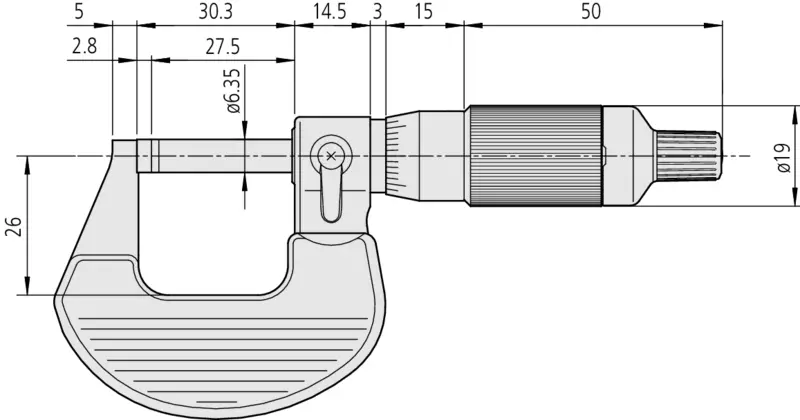

Dimensions
