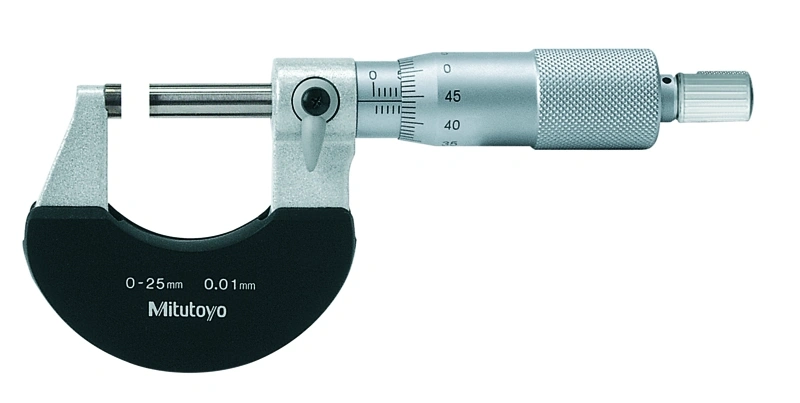

Outside Micrometer with Heat Ins. Plate 0-25mm, 0,01mm 102-301

SKU: 102-301
A Mitutoyo basic, cost effective, non-digital micrometer. Cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Outside Micrometer with Heat Ins. Plate 0-25mm, 0,01mm 102-301
  • Outside Micrometer with Heat Ins. Plate 0-25mm, 0,01mm 102-301
  • Description
Technical Data

Digital/Analog:
Analog
Delivered:
Including box, key, certificate of inspection
Inch-Metric:
Metric
Range:
0 - 25mm
Graduation:
0,01 mm
Max.
Permissible Error J MPE:
±2 μm
Flatness:
0,6 μm
Parallelism:
2 μm
Remarks:
Ratched Stop
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, 6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, 18 mm
Measuring force:
5 - 10N
Mass:
180g

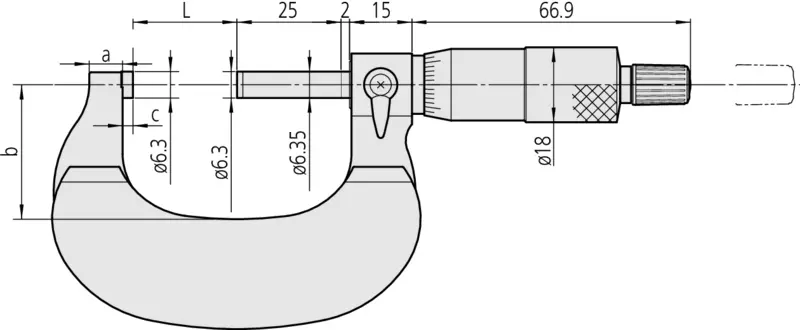

Dimensions






L: 0 mm a: 5 mm b: 26 mm c: 2.5 mm
