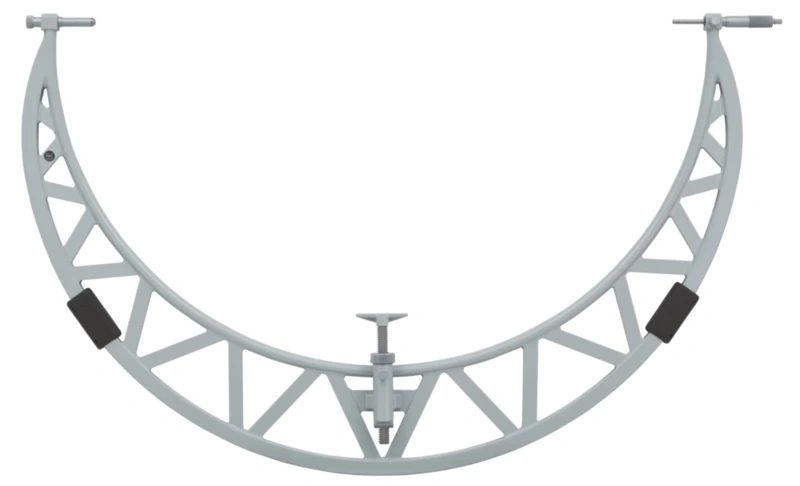

Outside Microm. Anvil Extension Collar 1000-1100mm 105-408

SKU: 105-408

This Outside Micrometer comes with Extension Anvil Collars.
It offers you the following benefits:

  • The collars have a stable and rugged yet lightweight tube construction, and are ideal for large micrometers.
  • The 50 mm spindle stroke gives you extended range compared to standard spindle types.
  • Anvil collars extend the measuring range even further.
  • The setting standards supplied cover the whole measuring range.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Outside Microm. Anvil Extension Collar 1000-1100mm 105-408
  • Outside Microm. Anvil Extension Collar 1000-1100mm 105-408
  • Description
Technical Data

Model:
OMS1-1100P
Digital/Analog:
Analog
Delivered:
Including box, with spanner, setting standard (2 pcs.), 50 mm extension collar
Inch-Metric:
Metric
Measuring spindle:
With spindle lock, ø8 mm, spindle pitch 0,5 mm
Range:
1,000-1,100 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Graduation:
0,01 mm
Limit of error:
±21 µm
Spindle feed error:
6 µm
Flatness:
1,3 µm
Parallelism:
13 µm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring force:
5-10 N
Extension collar:
50 mm
Remarks:
With workpiece stop 100 mm adjustable
Mass:
9.4 kg

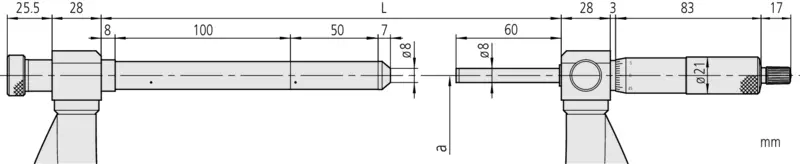

Dimensions



L: 1225 mm    a: 600 mm
