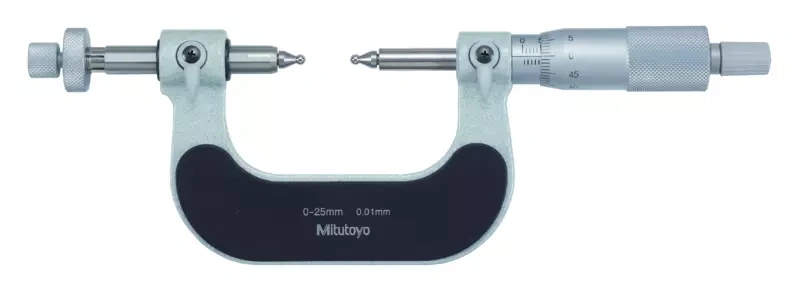

Gear Tooth Micrometer 0-25mm 124-173

SKU: 124-173

Measuring the over-pin diameter of gears .

It has interchangeable steel or carbide ball inserts (optional accessory)
that allow you to measure modules sized between 0.5-5.25 mm.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Technical Data

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25mm
Graduation:	0,01 mm
Spindle feed error:	3μm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, 6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, 18 mm
Measuring force:	5 - 10N
Mass:	295g
