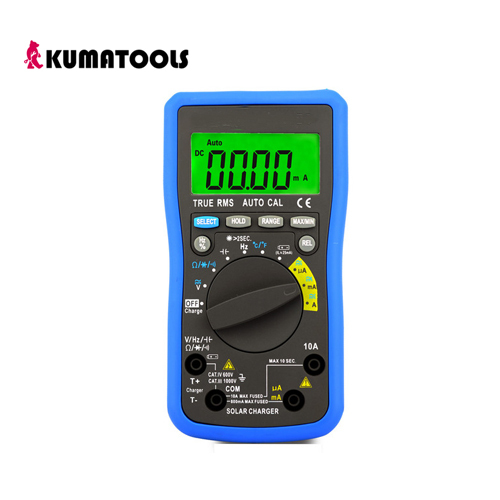

Digits Auto Cal Multimeter Sku#18-141-2066

The meters can be used to measure DC & AC voltage, DC & AC current, resistance, capacitor, Frequency, positive diode voltage fall,Battery power, Temperature and Continuity. 90BS Rechargeable and soler charger.

Product Specification

5-1 Max Voltage between input terminal and Earth Ground: CAT Ⅳ 600V ;

5-2 Over-range Indication: display “OL” for the significant digit.;

5-3 Automatic display of negative polarity “_” .;

5-4 Low Battery Indication: ''"displayed;

5-5 Max LCD display: 6000 digits; capacitor, Frequency range: 9999 digits;

5-6 auto ranges;

5-7 Fuse protection: F-800mA/1000V (Ø6x32mm) F-10A/1000V (Ø10x38mm)

5-8 Power Supply: 3.6V Ni-MH Battery

5-9 Green Power: Soler charger.

5-10 Auto power-off：15 minites, Push SELECT Key ,Auto Power Off disable;

5-11 Operating Temp.: 0℃ to 40℃ (relative humidity <85%);

5-12 Storage Temp.:-10℃ to 50℃ ((relative humidity <85%);

5-13 Guaranteed precision Temp.: 23±5 ℃ (relative humidity <70%);

5-14 Dimension: 193×88×41mm;

 Weight: approx.320g (including battery)
