Home > Measuring Tools > Micrometers > Digital Screw Thread Micrometer IP65 0-25mm 326-251-30
  • Digital Screw Thread Micrometer IP65 0-25mm 326-251-30
1/1
  • Digital Screw Thread Micrometer IP65 0-25mm 326-251-30

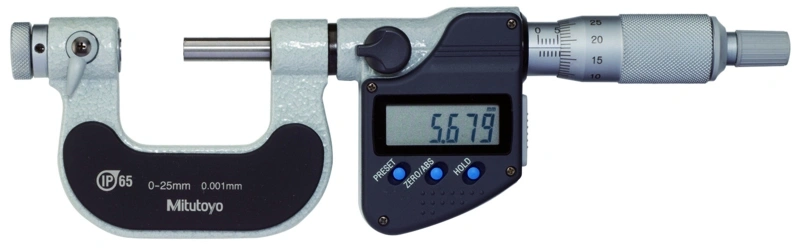

Digital Screw Thread Micrometer IP65 0-25mm 326-251-30

SKU: 326-251-30
This Digimatic Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Digital Screw Thread Micrometer IP65 0-25mm 326-251-30
  • Description
Technical Data

Digital/Analog:
Digital
Delivered:
Including box, spanner, 1 SR44 battery, without interchangeable tips
Inch-Metric:
Metric
Range:
0 - 25 mm
Digital step:
0,001 mm
Spindle feed error:
3 µm
Display:
LCD, character height 7.5 mm
Measuring face:
Interchangeable anvil/spindle inserts (optional)
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
350 g

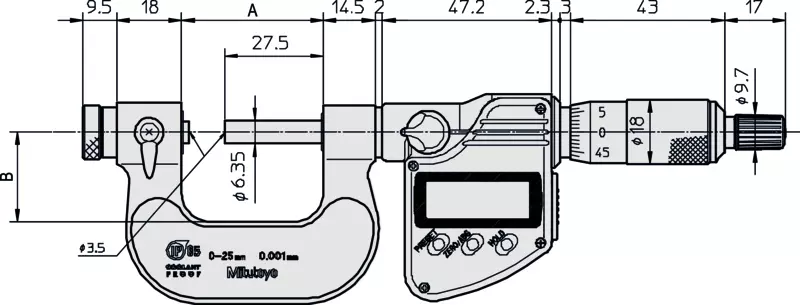

Dimensions





 A:  39.5 mm    B: 25mm
