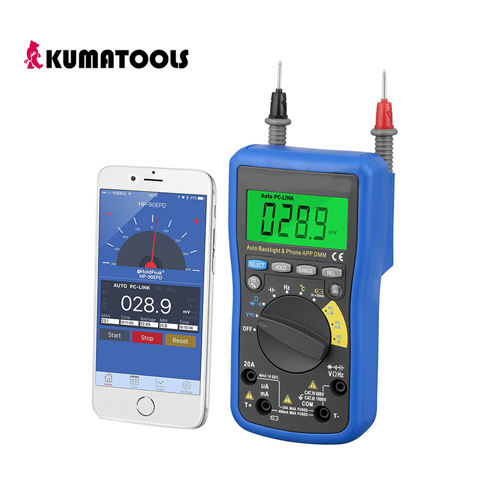

Digital Multimeter Sku#18-141-2065

• The intelligent digital multimeter is characterized at slim size, portable, stable performance and anti-dropping capacity. Using 4000 counts digit LCD monitor with character 22mm high, they offer clear readings.
• With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit, the meters give excellent performance and exquisite making as a handy utility instrument.
• It can be connected with mobile phone by Bluetooth, and display on phone by APP, you can remote monitoring the measurement condition, the distance control is 10～15m.
• It can be used to measure DC & AC voltage, DC & AC current, resistance, capacitor, frequency, duty cycle, temperature, battery test, positive diode voltage fall and audible continuity.
• Note: Connect to mobile phone APP-The meter has serial data output function. It can be connected with mobile phone by Bluetooth, so the measured data can be recorded, analyzed, and processed by mobile phone APP. Before use this function, you need install the mobile phone APP by scan the QR code.

Product Specificaiton:
Max Voltage between input terminal and Earth GroundCAT Ⅳ 600V
Max LCD display4000 counts digit.
Measuring Temperature Range -20~1000℃/-4F-1832℉
Measuring Capacitance Range 51.2nF/512nF/5.12uF/51.2uF/100uF
Measuring Voltage Range 400mV/4V/40V/400V/750V/1000V
Measuring Current Range 400uA/4mA/40mA/400mA/4A/20A
Measuring Resistance Range 400/4K/40K/400K/4M/40M
Frequency 5.12Hz~5.12MHz
Duty Cycle 0.1%~99.9%
Battery Test 1.5~12V
Relative Value YES
Operating Temp 0℃ to 40℃ (relative humidity <85%)
Storage Temp -10℃ to 50℃ (relative humidity <85%)
Guaranteed precision Temp 23±5℃ (relative humidity <70%)
Dimension166x88x51mm
Weightapprox. 320g (including battery)
