Digital Micrometer IP65 150-175mm 293-252-30

SKU: 293-252-30

This IP65 micrometer offers outstanding accuracy, with data output, is highly robust and offers the following benefits:

Oil-resistant material used for all plastic parts
Extraordinary battery life of 2,4 years
Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Technical Data

Model:	MDC-175MX
Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Metric
Range:	150 - 175mm
Digital step:	0.001 mm
Max. Permissible Error J MPE:	±3 μm
Flatness:	0.3 μm
Parallelism:	5 μm
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, 6.35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, 18 mm
Measuring force:	5 - 10N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ≤100 mm 1.2 years for > 100 mm
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	800g

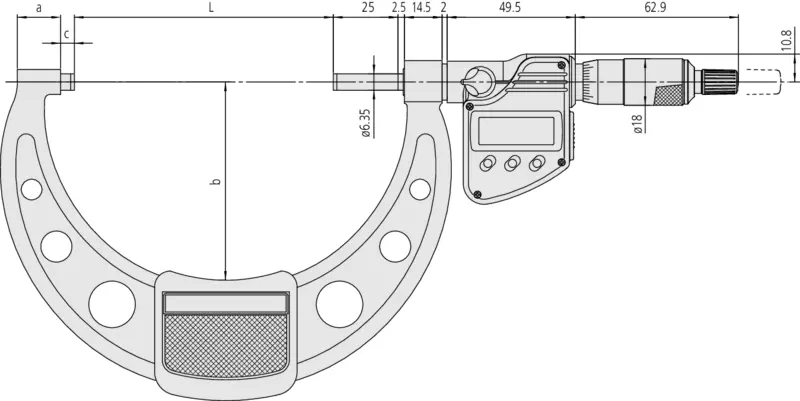

Dimensions

L: 150mm a: 19.1mm b:103 mm c: 6.1mm
