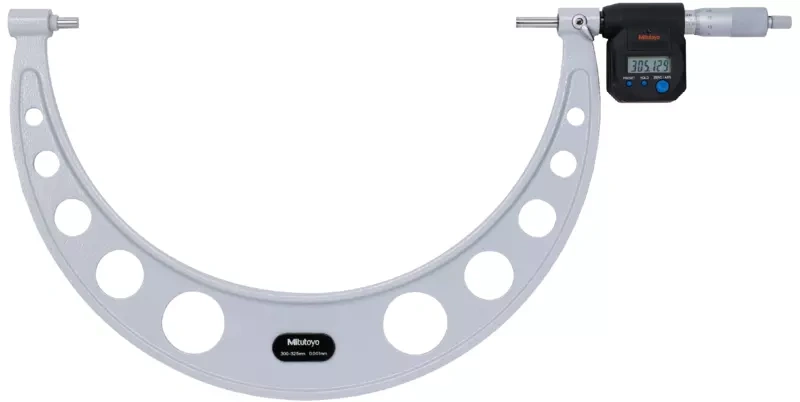

Digital Micrometer 300-325mm 293-582

SKU: 293-582

This Wide Measuring Range Digimatic Micrometer with data output offers the
following benefits:

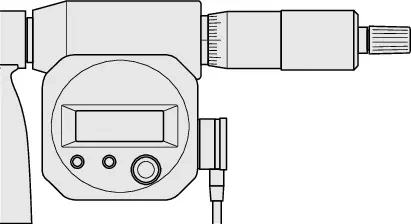

The micrometer‘s 330° rotatable display unit enables easy reading in all measurement positions.
With Carbide-tipped measuring faces

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Technical Data

Model:	MDC-325MB
Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Metric
Range:	300 - 325 mm
Digital step:	0.001 mm
Max. Permissible Error J MPE:	±6 µm
Flatness:	0.6 µm
Parallelism:	5 µm
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø8 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	10 - 14 N
Power supply:	2 batteries SR-44
Battery life:	Approx. 1.8 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	2000 g

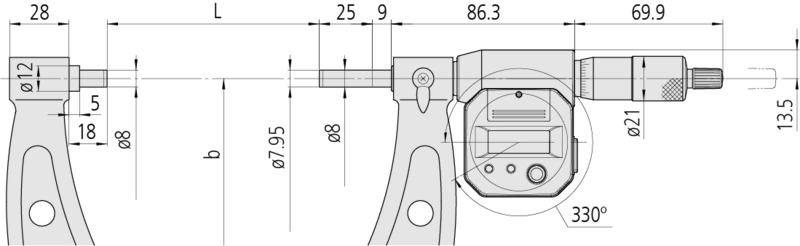

Dimensions

L: 353 mm b: 187 mm
