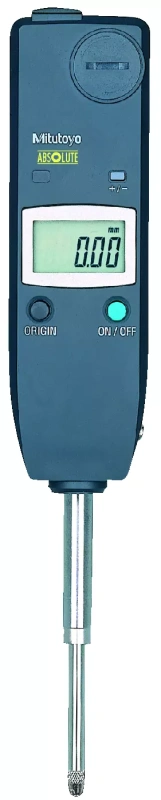

Digital Indicator ID-U 25,4mm, 0,01mm 575-121

Name: Digital Indicator ID-U 25,4mm, 0,01mm 575-121
Brand: Kumatools
SKU: 575-121
Price: 274.32 USD
Availability: InStock

SKU: 575-121

An economical, slim-style Mitutoyo digital indicator with an extemely long battery life suited to installation in measuring jigs where access may be restricted. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Technical Data

Model:	ID-U1025
Digital/Analog:	Digital
Inch-Metric:	Metric
Delivered:	In a box with SR44 battery and spindle lifting handle 137693
Range:	25.4 mm
Digital step:	0.01 mm
Max. Permissible Error	0.02 mm
E MPE (Total Range):	0.02 mm
H MPE (Hysteresis):	0.02 mm
R MPE (Repeatability):	0.01 mm
Measuring force MPL:	≤1.8 N
Protection:	IP42
Type:	EN ISO Standard
Mass:	140 g
Display:	LCD, character height 8.5 mm
Max. response speed:	Unlimited
Alarm:	Low voltage, sensor error, ABS data composition error
Stem ∅:	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery SR44
Battery life:	Approx. 20000 hours
Remarks:	This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:	Yes
ON/OFF:	Yes
ORIGIN (ABS-Zero):	Yes
Counting direction switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

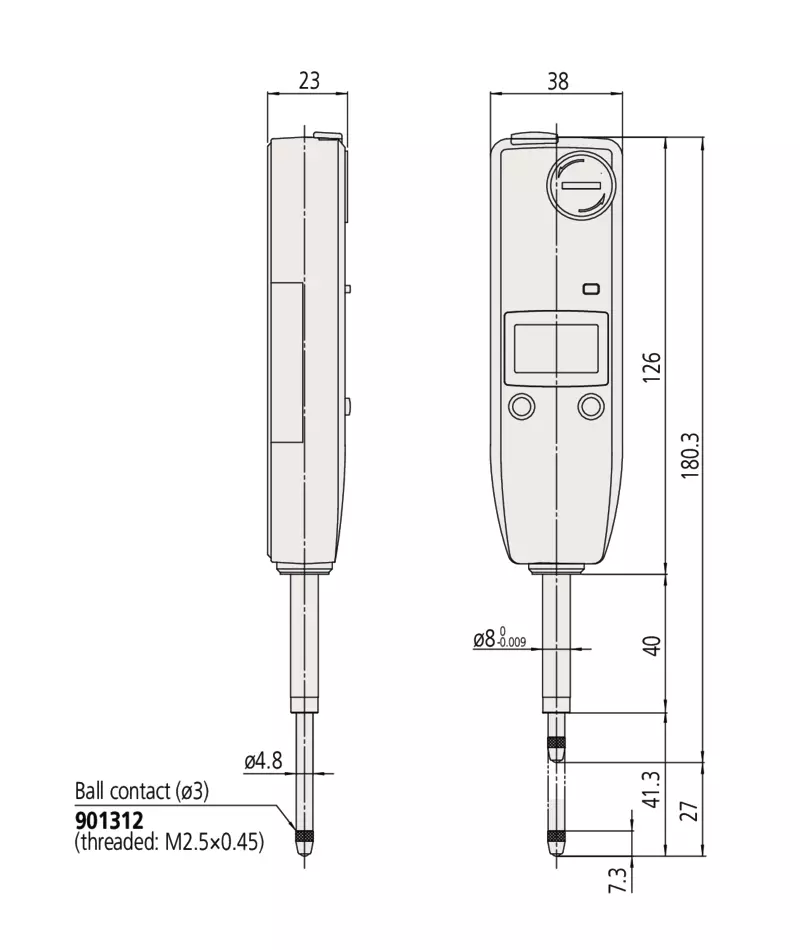

Dimensions:
