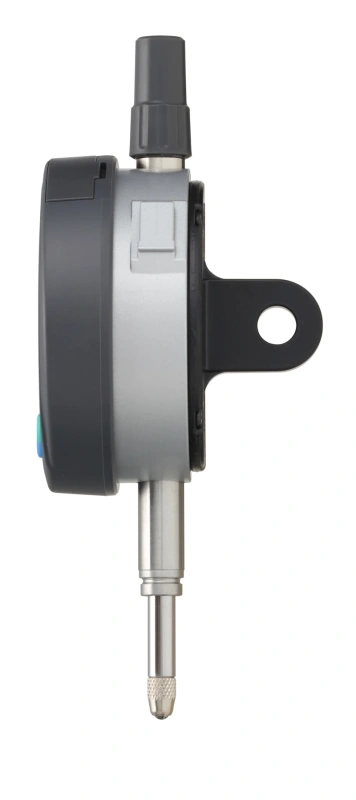

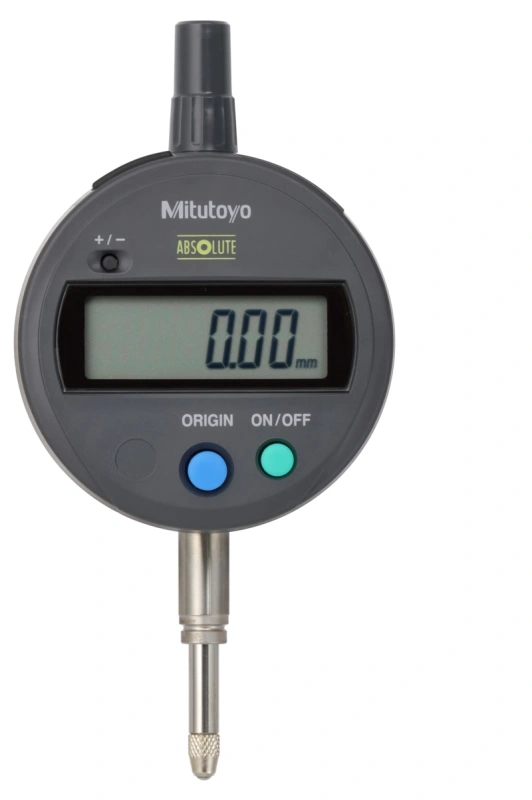

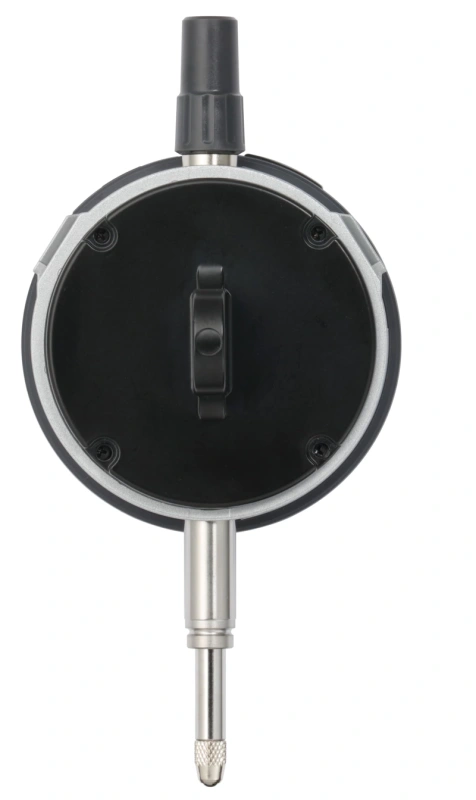

Digital Indicator ID-S 12,7mm, 0,01mm, Lug Back Plate 543-781-10

SKU: 543-781-10
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • You can access all functions by using the large, user-friendly
    buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.
  • Exceptional battery life.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Digital Indicator ID-S 12,7mm, 0,01mm, Lug Back Plate 543-781-10
  • Digital Indicator ID-S 12,7mm, 0,01mm, Lug Back Plate 543-781-10
  • Digital Indicator ID-S 12,7mm, 0,01mm, Lug Back Plate 543-781-10
  • Digital Indicator ID-S 12,7mm, 0,01mm, Lug Back Plate 543-781-10
  • Description
Technical Data
Model: ID-S1012X2
Digital/Analog: Digital
Inch-Metric: Metric
Delivered: Including SR44 battery, certificate of inspection
Range: 12.7mm
Digital step: 0.01 mm
Max. Permissible Error 0.02 mm
E MPE (Total Range):
H MPE (Hysteresis): 0.02 mm
R MPE (Repeatability): 0.01 mm
Measuring force MPL: ≤1.5 N
Protection: IP42
Type: EN ISO Standard
Mass: 150g
Display: LCD, character height 9 mm
Max. response speed: Unlimited
Alarm: Low voltage, sensor error, ABS data composition error
Stem : 8 mm
Contact point: Carbide ball, thread: M2.5x0.45
Power supply: 1 battery SR44
Battery life: Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Remarks: This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output: Yes
ON/OFF: Yes
ORIGIN (ABS-Zero): Yes
Counting direction switchable: Yes
Digital Scale: Electrostatic capacitance type absolute linear encoder

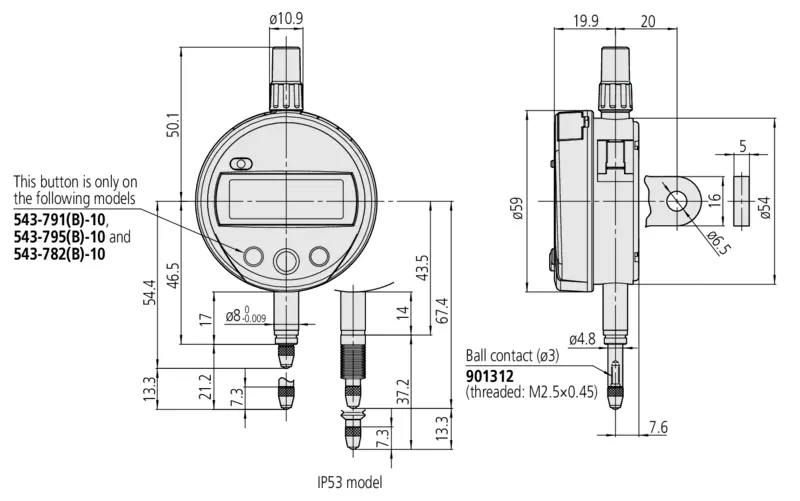

Dimensions
