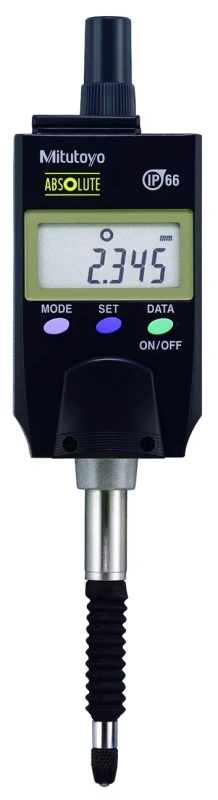

Digital Indicator ID-N, IP66 12,7mm, 0,001mm 543-575

Name: Digital Indicator ID-N, IP66 12,7mm, 0,001mm 543-575
Brand: Kumatools
SKU: 543-575
Price: 420.12 USD
Availability: InStock

SKU: 543-575

A Mitutoyo slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Technical Data

Model:	ID-N112
Digital/Analog:	Digital
Inch-Metric:	Metric
Delivered:	Including SR44 battery, certificate of inspection
Range:	12.7mm
Digital step:	0.001 mm/0.01 mm
Max. Permissible Error	0.003 mm
E MPE (Total Range):	0.003 mm
H MPE (Hysteresis):	0.002 mm
R MPE (Repeatability):	0.002 mm
Measuring force MPL:	≤2.5 N
Protection:	IP66
Type:	EN ISO Standard
Mass:	130g
Display:	LCD, character height: 6.2 mm
Max. response speed:	Unlimited
Alarm:	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Stem :	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery SR44
Battery life:	Approx. 7000 hours
DATA/HOLD:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
GO/±NG judgement:	Yes
External	Yes
PRESET / ZERO:	Yes
Counting direction switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

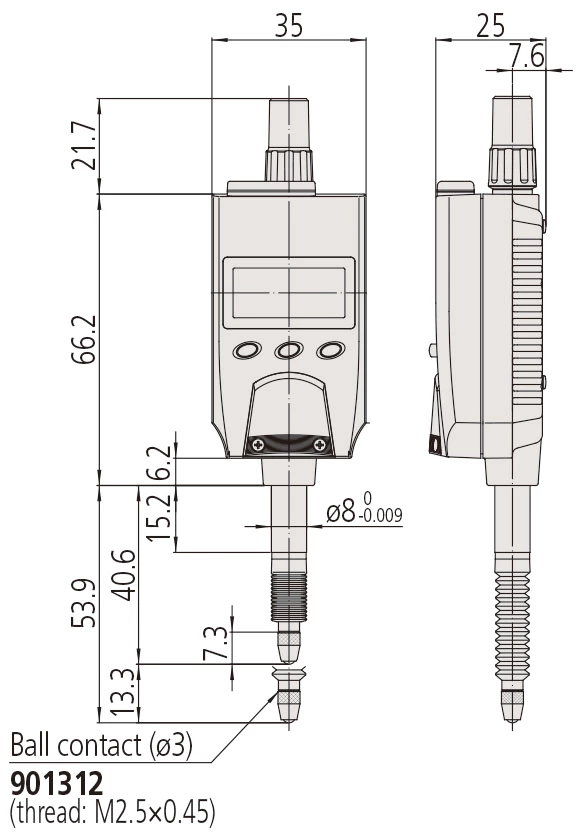

Dimensions
