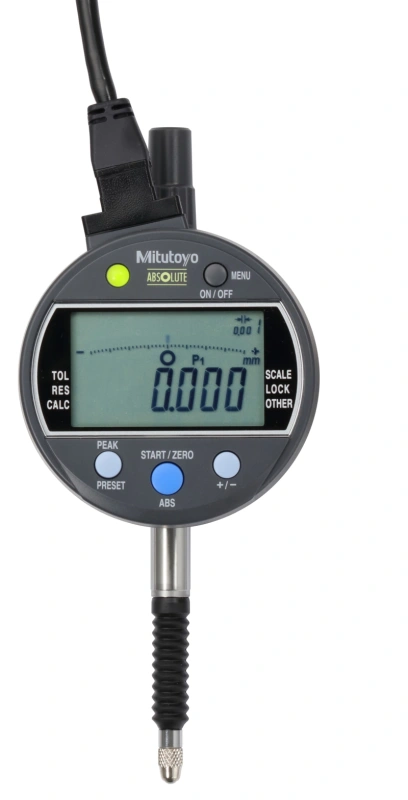

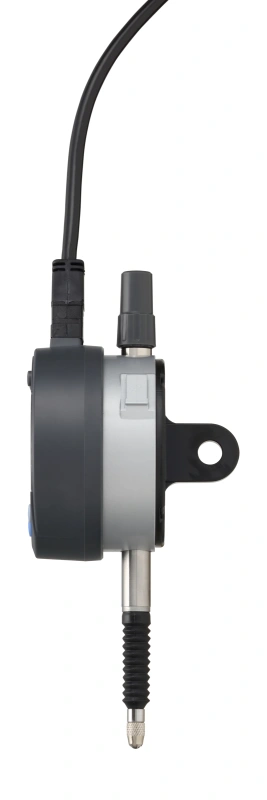

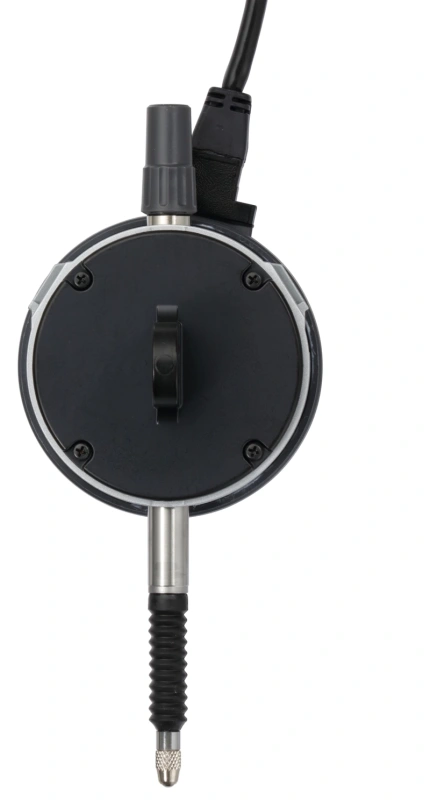

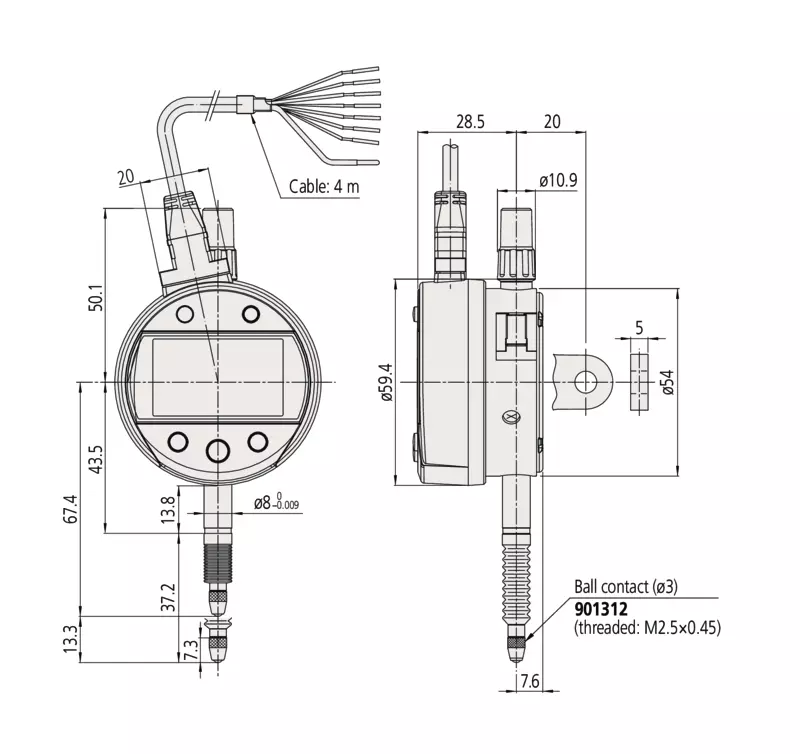

Digital Indicator, Signal ID-C 12,7mm, 0,001mm, Lug Back Plate 543-350-10

SKU: 543-350-10

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.

Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
Measures MAX/MIN/RANGE (run-out value).
Saves three different Preset and Tolerance settings.
Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
Analogue bar graph in the display (12 different scales switchable)
GO/±NG tolerance judgment function

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Description

Technical Data

Model:	ID-C112JX2
Digital/Analog:	Digital
Inch-Metric:	Metric
Delivered:	With signal cable 4 m. One end is fixed to the main unit. No connector is supplied for the other end.
Range:	12.7 mm
Digital step:	0.001 mm/0.01 mm
Max. Permissible Error	0.003 mm
E MPE (Total Range):	0.003 mm
H MPE (Hysteresis):	0.002 mm
R MPE (Repeatability):	0.002 mm
Measuring force MPL:	≤2.5 N
Protection:	IP54
Type:	EN ISO Standard
Display:	LCD, character height 8 mm
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 100 times/s
Measurement frequency (MAX/MIN/RANGE):	(plunger speed max. 0.1mm/s for peak measurement)
Alarm:	Low voltage, ABS composition error, overflow error, setting error
Stem ∅:	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery CR2032
PRESET 3x:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Signal output:	Yes
(+NG, OK, -NG):	Yes
Signal input:	Yes
No-voltage input,
(PRESET_RECALL/ZERO, HOLD_RESET):
ABS / INC (INC ZERO):	Yes
GO/±NG judgement via LED:	Yes
Calculation function (with formula):	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	No
Digital Scale:	Electrostatic capacitance type absolute linear encoder
Mass:	295 g
