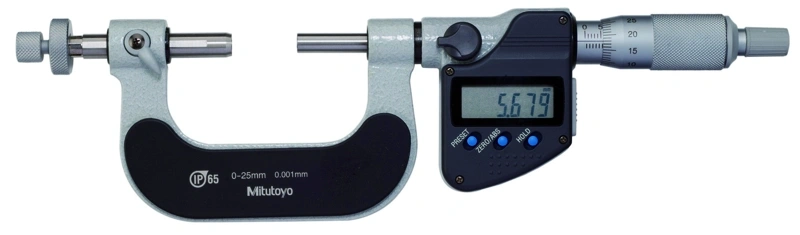

Digital Gear Tooth Micrometer IP65 0-25mm 324-251-30

SKU: 324-251-30

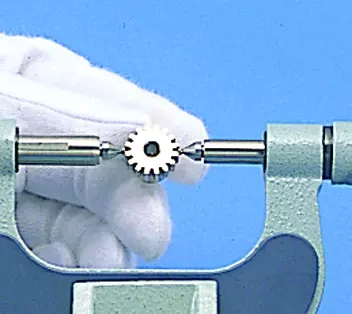

This Digimatic Gear Tooth Micrometer is designed to measure the over-pin diameter of gears .

It has interchangeable steel or carbide ball inserts (optional accessory) that allow you to measure modules sized between 0.5-5.25 mm.

0.0 (0 Reviews)

0 Sold

Received successfully

Coupon Code

Description

Technical Data

Digital/Analog:	Digital
Delivered:	Including box, spanner, 1 SR44 battery, without interchangeable tips
Inch-Metric:	Metric
Range:	0 - 25 mm
Digital step:	0,001 mm
Spindle feed error:	3 µm
Display:	LCD, character height 7.5 mm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
PRESET:	Yes
2 x PRESET:	Yes
Mass:	400 g

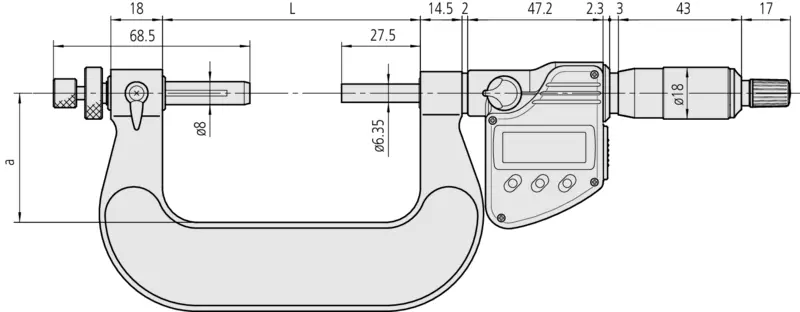

Dimensions

L: 64.5 mm a: 32 mm
