Home > Measuring Tools > Micrometers > Digital Disc Micrometer QuickMike, IP65 0-30mm, Disk=20mm 369-411-20
  • Digital Disc Micrometer QuickMike, IP65 0-30mm, Disk=20mm 369-411-20
1/1
  • Digital Disc Micrometer QuickMike, IP65 0-30mm, Disk=20mm 369-411-20

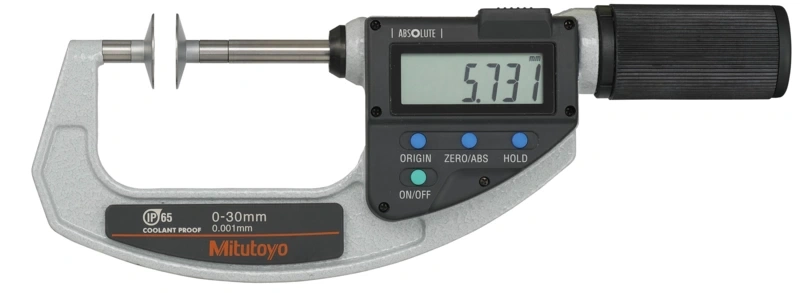

Digital Disc Micrometer QuickMike, IP65 0-30mm, Disk=20mm 369-411-20

SKU: 369-411-20
The ABSOLUTE Digimatic Disc Micrometer Quickmike allows you to measure with a fast spindle feed of 10 mm per thimble rotation.
It offers you the following benefits:
  • Suitable for measuring felt, rubber, cardboard, fabric etc.
  • Suitable to measure "root tangent length" of spur gears and helical gears.
  • With a non-rotating spindle and disc-shaped measuring surface.
  • Measuring force is adjustable for various kinds of workpieces (series 227)
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Digital Disc Micrometer QuickMike, IP65 0-30mm, Disk=20mm 369-411-20
  • Description
Technical Data

Digital/Analog:
Digital
Delivered:
Including box, 1 SR44 battery
Inch-Metric:
Metric
Range:
0 - 30 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±4 µm
Flatness:
1 µm
Parallelism:
4 μm
Display:
LCD, character height 10 mm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
ø6,35 mm, non-rotating, spindle feed 10 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 5 years
Measurable module:
0.5 - 6 mm
ON/OFF:
Yes
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
HOLD:
Yes
Mass:
360 g

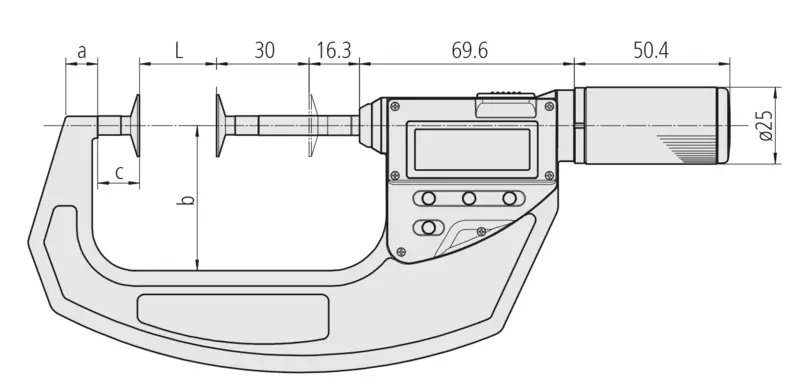

Dimensions





 L: 0 mm    a: 8.5 mm     b: 36 mm   c:  13.5 mm
