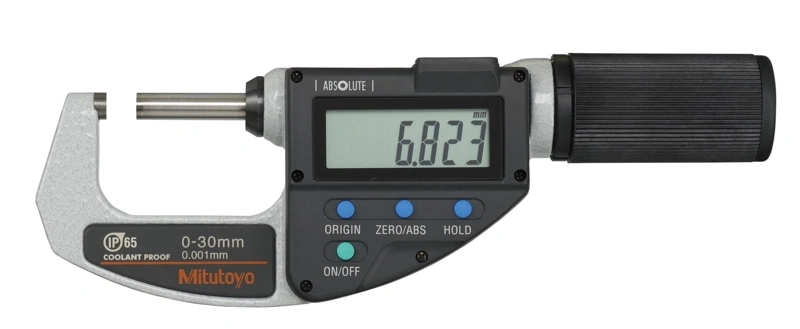

Digital Absolute Micrometer QuickMike 0-30mm 293-666-20

SKU: 293-666-20
This Quickmike, with a non-rotating spindle, delivers much faster movement than standard models.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:
  • With 10 mm feed per thimble rotation, it delivers twenty times as fast as standard devices.
  • Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
  • ABSOLUTE linear scale means no restriction on adjustment speed.
  • Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Digital Absolute Micrometer QuickMike 0-30mm 293-666-20
  • Description
Technical Data

Model:
MDQ-30MX
Digital/Analog:
Digital
Delivered:
Including box, SR44 battery
Inch-Metric:
Metric
Range:
0 - 30mm
Digital step:
0.001 mm
Max. Permissible Error J MPE:
±2 μm
Flatness:
0.3 μm
Parallelism:
2 μm
Data output:
Yes
Display:
LCD, character height 10 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
6.35 mm, non-rotating, spindle feed 10 mm
Measuring force:
5 - 12N
Power supply:
1 battery SR-44
Battery life:
Approx. 5 years
ON/OFF:
Yes
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
275g

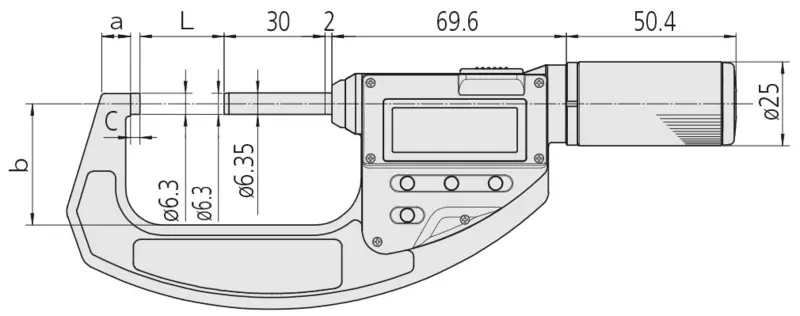

Dimensions





L: 0 mm a: 7mm b: 25mm c: 2 mm
