Home > Measuring Tools > Micrometers > Dial Gauge Micrometer 0-25mm, without Indicator 107-201
  • Dial Gauge Micrometer 0-25mm, without Indicator 107-201
  • Dial Gauge Micrometer 0-25mm, without Indicator 107-201
1/1
  • Dial Gauge Micrometer 0-25mm, without Indicator 107-201
  • Dial Gauge Micrometer 0-25mm, without Indicator 107-201

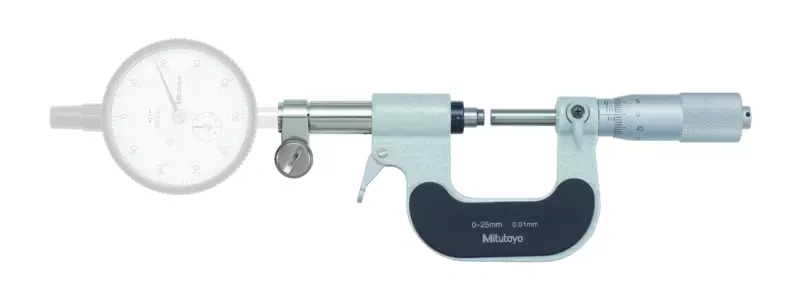

Dial Gauge Micrometer 0-25mm, without Indicator 107-201

SKU: 107-201

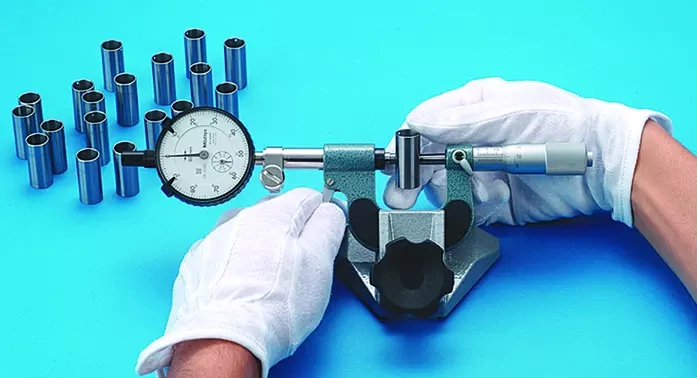

This Dial Gauge Micrometer allows you to quickly measure mass-produced parts.
It offers the following benefits:
  • Designed to mount a dial or a Digital indicator for direct GO/NG judgement of mass-produced parts.
  • You can take rapid measurements thanks to its anvil retracting trigger.
  • 3 mm anvil retracting stroke.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
  • Dial Gauge Micrometer 0-25mm, without Indicator 107-201
  • Dial Gauge Micrometer 0-25mm, without Indicator 107-201
  • Description
Technical Data

Delivered:
Including box, with spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0.01 mm
Anvil retracting stroke:
3 mm
Spindle feed error:
3 µm
Flatness:
0,6 µm
Parallelism:
2 μm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve
satin chrome finish ø18 mm
Measuring force:
5 - 10 N
Mass:
480 g

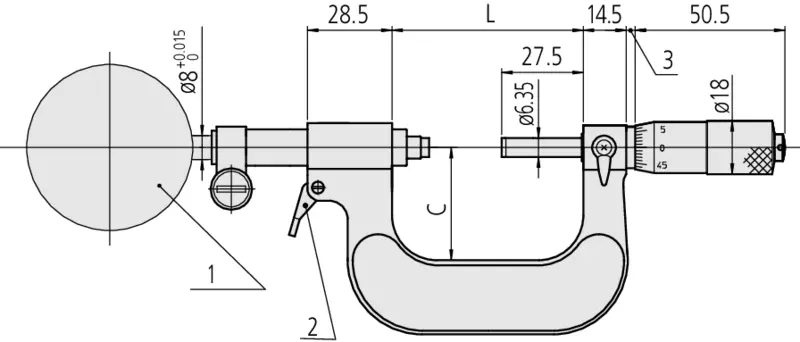

Dimensions


 L:  39.5 mm   c: 30 mm
