Home > Measuring Tools > Micrometers > Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 150mm Throat 118-102
  • Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 150mm Throat 118-102
1/1
  • Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 150mm Throat 118-102

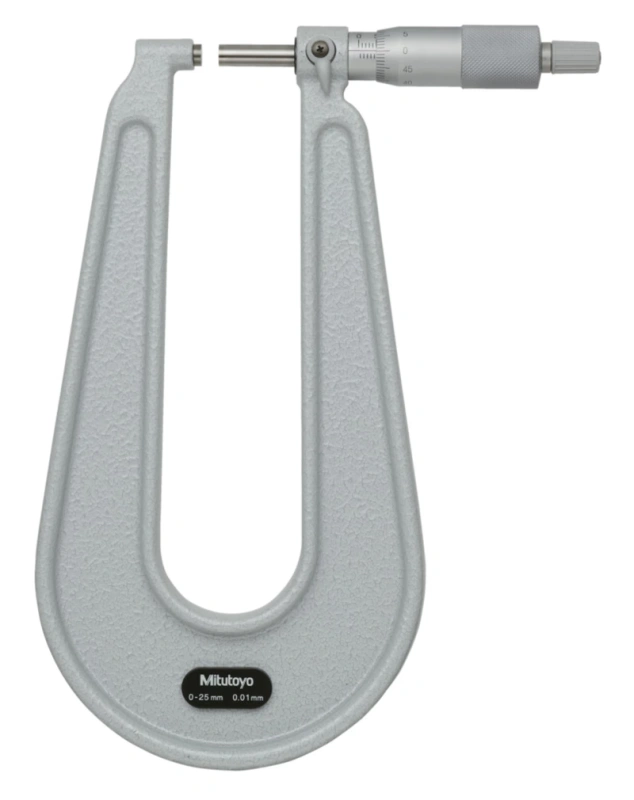

Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 150mm Throat 118-102

SKU: 118-102
A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
0.0 (0 Reviews)
0 Sold
Sign in to view the price.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
0 in stock
Add to Favorites (0)
  • Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 150mm Throat 118-102
  • Description
Technical Data
Model:
PMU150-25
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error J MPE:
±4 µm
Flatness:
0,6 µm
Parallelism:
3 μm
Measuring face:
Carbide-tipped, micro-lap finish
Anvil / Spindle:
Type A, flat/flat
Measuring spindle:
With spindle lock, throat depth ≤ 150 mm : ø6,35 mm
throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Mass:
740 g

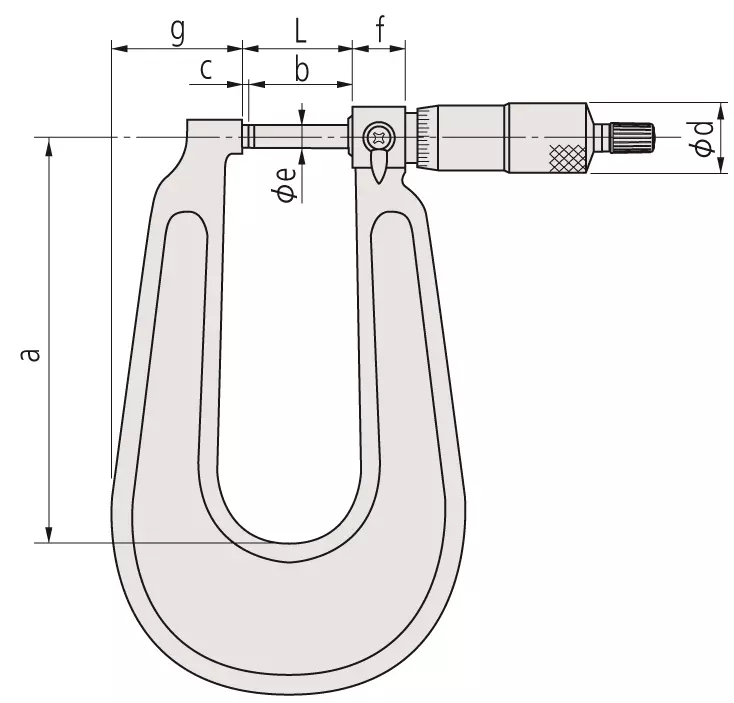

Dimensions




L: 30.3 mm    a: 160 mm   b: 27.5 mm   c: 2.5 mm   d: 18 mm  f: 14.5 mm  g: 43 mm
